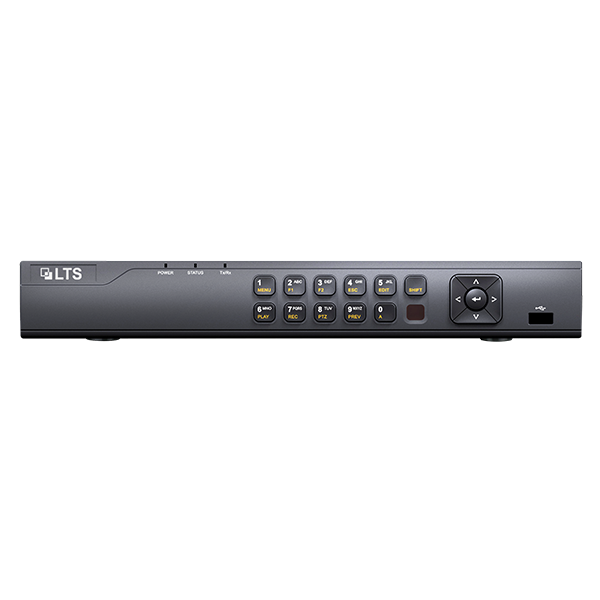

Support HD-TVI / IP / Analog / Analog HD cameras + 1 IP Camera, HDMI & VGA output up to 1920x1080P resolution, CVBS output for spot out and long transmission, Up to 1080p@30fps with LTS Efficient mode onDETAILS:4 Channel HD-TVI Video RecorderSupport Live View, Storage, Playback up to 4 HD-TVI / Analog / Analog HD
DETAILS:
Powerful bandwidth and scalable DVR allows you to connect to analog, HD-TVI, or IP cameras your project needs.
Easy to install with an intuitive interface provides all features needed for layouts, configuration, and setup
High Definition surveillance with maximum reliability to help meet demands and reliability

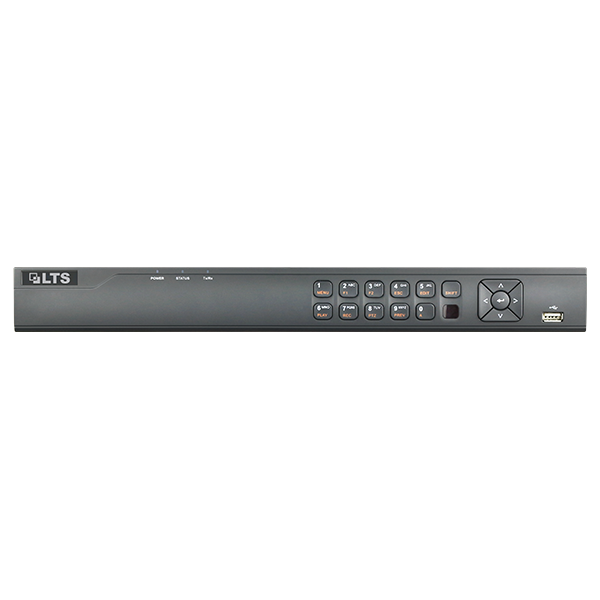

32 Channel Tri-brid Digital Video Recorder
Analog & HD-TVI Video In: 32CH
IPC Input: Up to 8CH 1080P@30fps
Video Output: VGA/HDMI up to 1080P
Playback Channel: 32CH
Audio In/Out: 4CH/1CH, RCA
Alarm In/Out: 16/4
Network: 10/100/1000M
Storage: 4 SATA up to 24TB
eSATA: 1
USB: 3 USB 2.0
PTZ: 1 RS485
Support POS #: 8
DETAILS:
16 Channel Video Recorder
Support Live View, Storage, Playback up to 16 HD-TVI 3MP / Analog / AHD Cameras + 2 IP Camera up to 4MP
Up to 4K HDMI Video Output 3MP@15fps / 1080p@30fps,
CVBS Output
2 SATA up to 16TB HDD
H.264 / H.264 Zip+
2 USB 2.0
4 CH Audio Input
Enhanced VCA Mode
DETAILS:

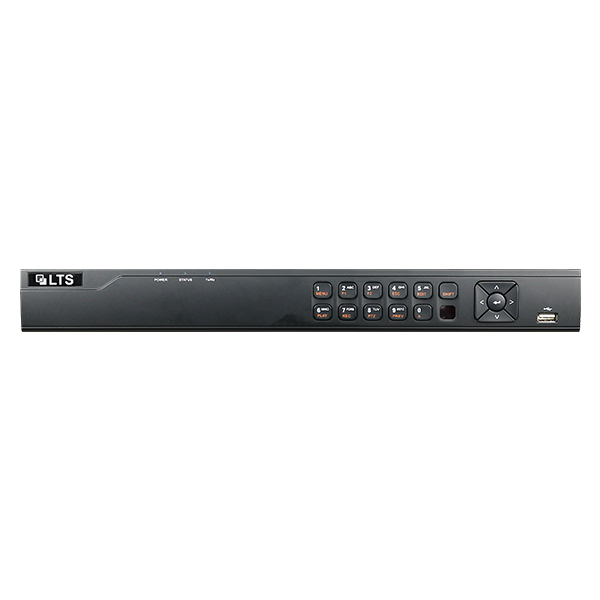

16 Channel Video Recorder H.265+
Support HD-TVI / AHD/ ANALOG / CVI / IP input (5-in-1)
1-4 Channel support up to 3MP HD-TVI input
Up to 2-Ch 4MP IP Cameras input
Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
Up to 4K (3840X2160) HDMI Video Output
CVBS Output
2 SATA up to 16TB HDD
1 USB 2.0, 1 USB3.0
1080P@30fps with LTS efficient mode on
